What ebike protocol is for LCD display

There is no one “ebike protocol” as such, as there are a variety of communication protocols that can be used in different types of ebike systems. Some of the most common communication protocols used in ebike systems include:

1 UART

UART (Universal Asynchronous Receiver/Transmitter) is a commonly used communication protocol for connecting different electronic components, including in some ebike systems.

UART is a simple, serial communication protocol that uses two wires to transmit data between two devices: one wire for transmitting data (TX) and another for receiving data (RX). The protocol is asynchronous, meaning that there is no separate clock signal used to synchronize the data transfer between the two devices.

In the context of an ebike, UART can be used to connect various components such as the motor controller, display, and sensors to the main controller or microcontroller. The protocol allows these components to communicate with each other and exchange information about the status of the system, such as speed, torque, battery level, and other parameters.↳

One of the key advantages of UART is its simplicity and ease of use. The protocol is widely supported by many different types of electronic components and devices and can be easily implemented using a simple set of hardware and software components.

UART is also known for its reliability and relatively high data transfer rates, making it well-suited for many different types of applications, including ebike systems. The protocol is also very flexible, allowing it to be used in various configurations and setups.

Overall, UART is a commonly used communication protocol in many electronic systems, including in some ebike systems. Its simplicity, reliability, and flexibility make it a popular choice for many different types of applications.

2 CAN bus

CAN bus stands for “Controller Area Network” bus, and it is a popular communication protocol used in a wide range of industrial and automotive applications, including electric vehicles such as ebikes.

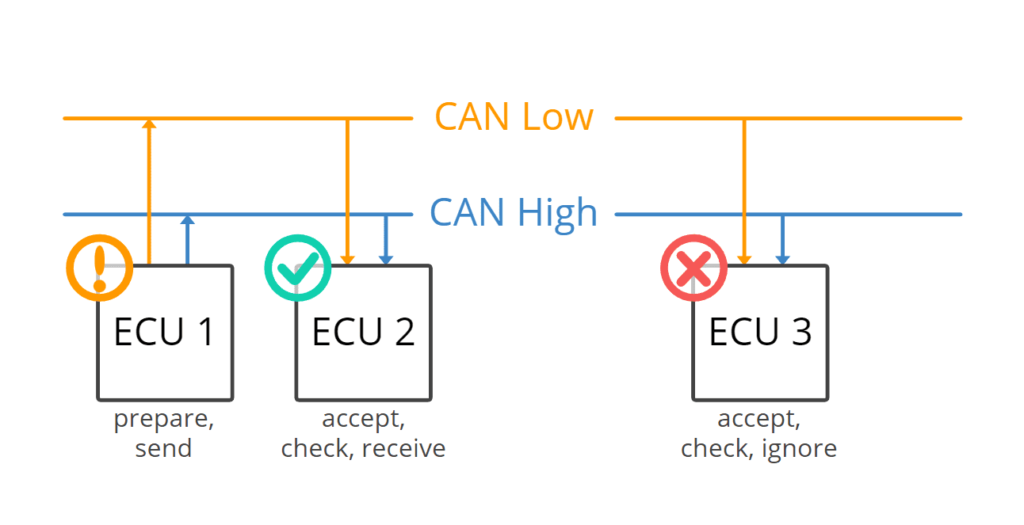

The CAN bus protocol was first developed in the 1980s by Bosch for use in automotive applications, and it has since become a widely adopted standard for communication between microcontrollers, sensors, and other electronic devices. The protocol is designed to enable reliable communication between devices over a single bus, with the ability to transmit and receive data simultaneously.

In the context of an ebike, the CAN bus can be used to connect various components such as the motor controller, battery management system, and LCD display, allowing them to communicate with each other and exchange data in real-time. For example, the motor controller can send information about the ebike’s speed, torque, and power consumption to the battery management system, which can use this information to optimize the use of the battery and ensure safe operation.

The CAN bus protocol is particularly well-suited to applications that require high-speed and reliable communication, as it uses a prioritized messaging scheme that allows critical messages to be sent and received quickly, even in noisy environments. Additionally, the protocol is designed to be robust and fault-tolerant, with the ability to detect and correct errors in the data transmission process.

While the CAN bus protocol is more complex than other communication protocols like UART or I2C, it can provide significant benefits for complex and demanding systems like ebikes, by enabling efficient and reliable communication between the various electronic components of the system.

3 Bluetooth

Bluetooth is a wireless communication protocol that allows electronic devices to communicate with each other over short distances, typically within a range of a few meters. Bluetooth technology is widely used in various applications, including in some ebike systems.↳

In the context of an ebike, Bluetooth can be used to connect various components such as the motor controller, battery management system, and display to a smartphone app or other control device. This allows the user to monitor and adjust the performance of the ebike system, including settings such as speed, power output, and battery level.

Bluetooth operates in the 2.4 GHz frequency range and uses a technique called frequency hopping spread spectrum (FHSS) to avoid interference with other wireless devices in the area. The protocol uses a low-power, low-bandwidth data transfer method, which is well-suited for many different types of applications, including in ebike systems.

One of the key advantages of Bluetooth is its ease of use and compatibility with a wide range of different devices. Bluetooth is supported by many different types of smartphones, tablets, and other electronic devices, allowing users to easily connect and control their ebike systems using familiar devices and interfaces.

Bluetooth also supports a wide range of different profiles and services, which can be used to define the types of data and commands that are exchanged between devices. This makes it a highly flexible and versatile communication protocol that can be adapted to many different types of applications and use cases.

Overall, Bluetooth is a widely used wireless communication protocol that is well-suited for many different types of ebike applications. Its ease of use, compatibility with a wide range of devices, and versatility make it a popular choice for many different types of ebike systems.

4 ANT+

ANT+ is a wireless communication protocol developed by Garmin that is designed for use in low-power, low-bandwidth applications like fitness sensors and bicycle components, including ebike systems.

The protocol is based on the ANT wireless protocol, which uses a 2.4 GHz frequency band to provide reliable communication over short distances. ANT+ builds on this foundation by providing a standardized set of data profiles that enable communication between different types of sensors and devices.↳

In the context of an ebike, ANT+ can be used to connect various components such as the pedal cadence sensor, heart rate monitor, and power meter to the main controller or display. This allows the rider to monitor and analyze their performance in real-time, and can help with training, tracking progress, and improving overall performance.

One of the key advantages of ANT+ is its low power consumption, which makes it well-suited for use in battery-powered devices like ebikes. Additionally, the protocol is designed to be very reliable, with built-in error detection and correction mechanisms that help to ensure data integrity.

ANT+ is also designed to be very user-friendly, with simple pairing and setup procedures that make it easy to connect devices and start using them right away. This can be particularly important for ebike riders who may be using multiple sensors or devices at once, and need to be able to quickly and easily connect and configure them.

Overall, ANT+ is a popular communication protocol for ebike systems, thanks to its low power consumption, reliability, and ease of use. By enabling communication between different sensors and devices, it can help to provide riders with a better understanding of their performance and help them to achieve their goals.

5 CAN Open

CANopen is a communication protocol based on the Controller Area Network (CAN) bus protocol that is widely used in industrial and automation applications, including in some ebike systems.↳

CANopen is designed to provide a standardized set of communication services and protocols that can be used across different devices and systems. It defines a set of rules and procedures for transmitting and receiving messages on the CAN bus, including message format, message types, error handling, and network management.

In the context of an ebike, CANopen can be used to connect various components such as the motor controller, battery management system, and other sensors and devices to the main controller or display. This allows these components to communicate with each other and exchange information about the status of the system, such as speed, torque, battery level, and other parameters.

One of the key advantages of CANopen is its flexibility and scalability. The protocol defines a wide range of data types and communication services, allowing it to support a wide range of applications and devices. Additionally, it supports network management features that allow the system to adapt to changes in the network topology or device configuration, making it easy to add or remove devices as needed.

CANopen is also known for its high data transfer rates and robust error handling capabilities. The protocol includes mechanisms for detecting and correcting errors in the data transmission process, which can help to ensure data integrity and system reliability.

While CANopen is a more complex and specialized protocol than some other communication protocols used in ebike systems, it can be well-suited to applications that require high-speed and reliable communication, such as in large-scale industrial or automation systems. Its flexibility, scalability, and robustness make it a popular choice for many different types of applications.




6 I2C

I2C (Inter-Integrated Circuit) is a simple and widely used communication protocol that can be used to connect various components of an ebike system, such as sensors, displays, and other peripherals.

Overall, the choice of communication protocol for an ebike system will depend on a variety of factors, including the specific components and sensors being used, the desired data transfer rates and reliability, and other considerations related to the overall design and functionality of the system.
